Luxe Reverse-Fold

Unique Opening

Request Consultation

The Luxe Reverse Fold Door is the most unique opening available.  The Reverse Fold offers less intrusion into the interior, less lost space when open, and more of a canopy to the exterior.  The Luxe is flush mountable and awe inspiring, there's no other large window and door opening on the market quite like it.

When open, the Luxe folds along a horizontal hinge line and moves upward, while the bottom panel opens until horizontal which creates an awning effect.

The Luxe Reverse Fold Door large opening solution is a counterweight balanced, vertical lift bi-folding system constructed from structural steel and is suitable for all application types. The Luxe model can be constructed into custom doors, windows or wall systems. The steel frame is designed to withstand 30 psf high wind loads with minimal deflection. It is designed for applications where minimal internal projection is required.

Luxe Opened
Luxe Opened
Luxe Closed
Luxe Closed
Luxe
Luxe

Features & Options

The Luxe Reverse Fold door utilizes counterweight balance technology to ensure smooth operation and durability. Constructed from structural steel sections and suitable for residential, industrial, and commercial applications.

The Reverse Fold comes equipped with the standard safety features including the obstruction sensing REDDTM motor, safety photo eyes, and a patented fail safe device.

Luxe-02
  • Max Width: 30 FT
  • Max Height: 20 FT
  • Steel Frame w/ Aluminum Glass Capture
  • REDD Alert Obstruction Sensing
  • Photo Eyes
  • Touch Screen Wall Controller
  • Counterweight Counter-Balance
  • Operation: Motorized or Manual
  • Glass Options: 1/4" & 1" IGU
  • Cladding Options: Up to 4" & 15 lbs per SQF
  • Finish: Powder Coat
  • Remote Weight Options: YES
  • High-Wind Load Areas: YES
  • Compatible With Screens: Limited
  • NFRC Rated: YES
Request Consultation
Brochure
Brochure
Spec Sheet
Spec Sheet
CAD Files
CAD Drawings
BIM/REVIT
Modules
BIM/REVIT Modules
Installation Manual
Installation Manual
FVD_Icon_OwnersManual_WHT
Owners Manual
FVD_Icon_Warranty_WHT
Warranty
FVD_Icon_LEED_WHT
Leed Documents

Beautiful Open Space Solutions

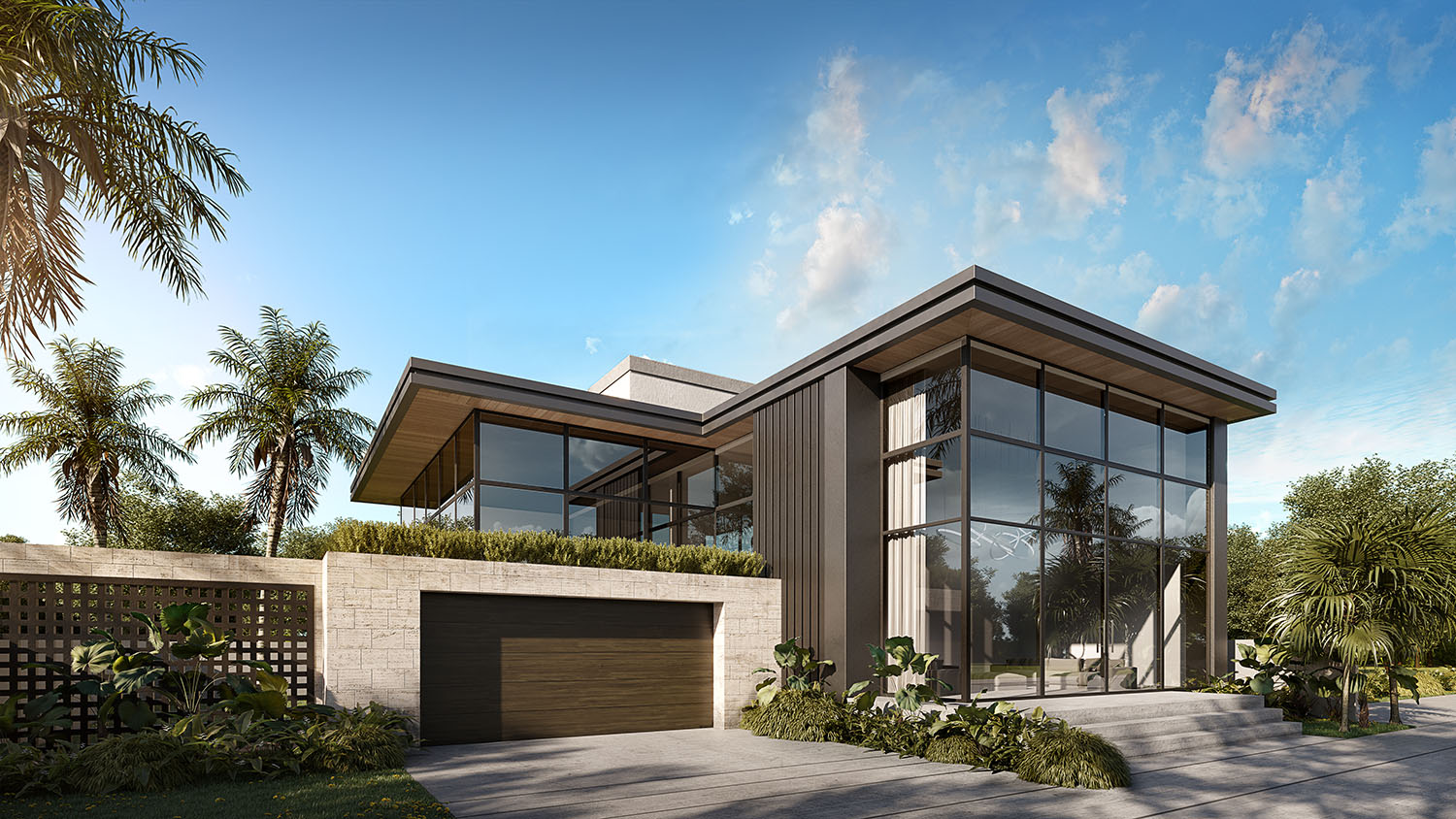

Modern house with large glass windows, a flat roof, and a wooden garage door. The exterior features concrete and wood elements, surrounded by palm trees and lush greenery under a clear blue sky.
